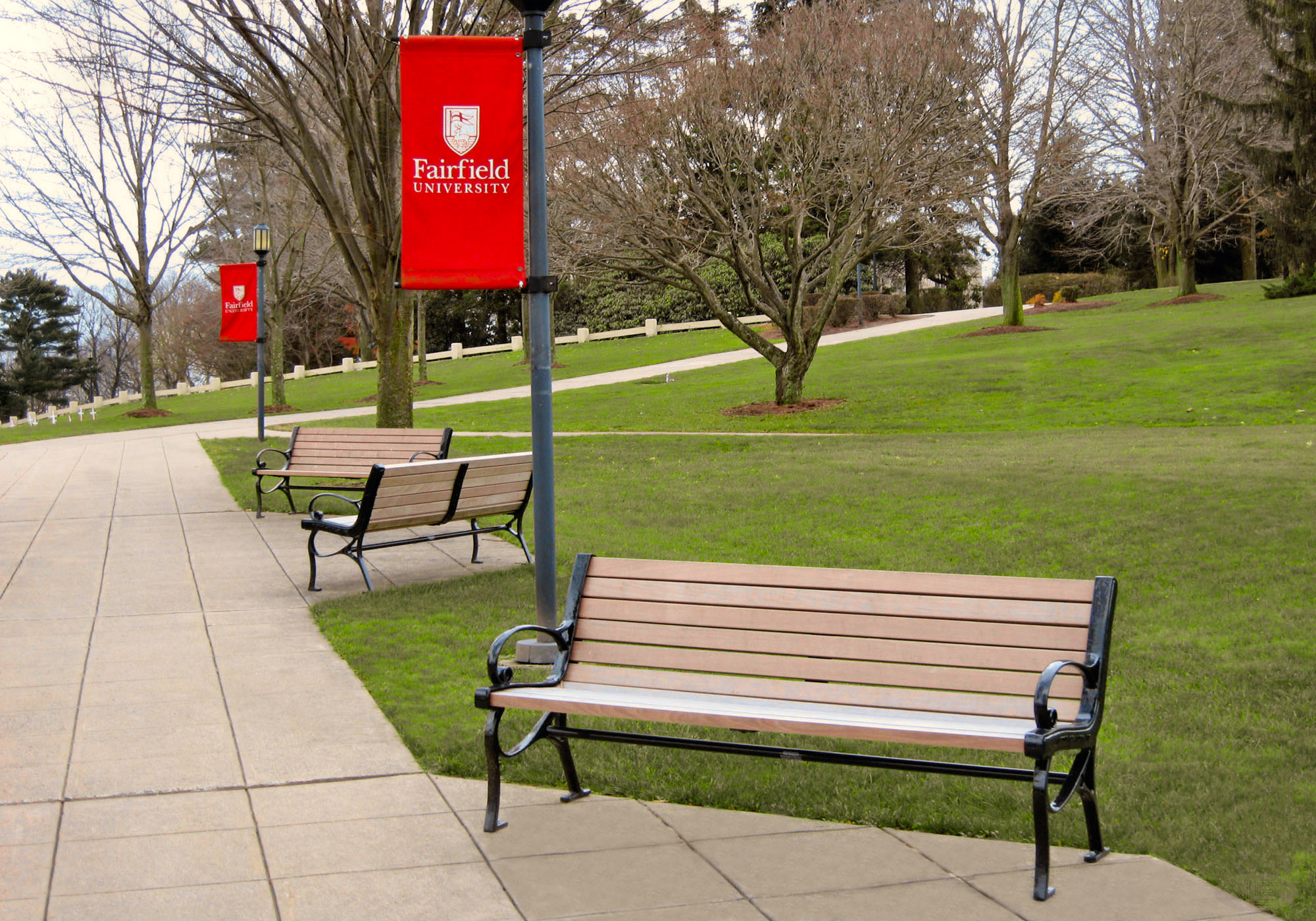

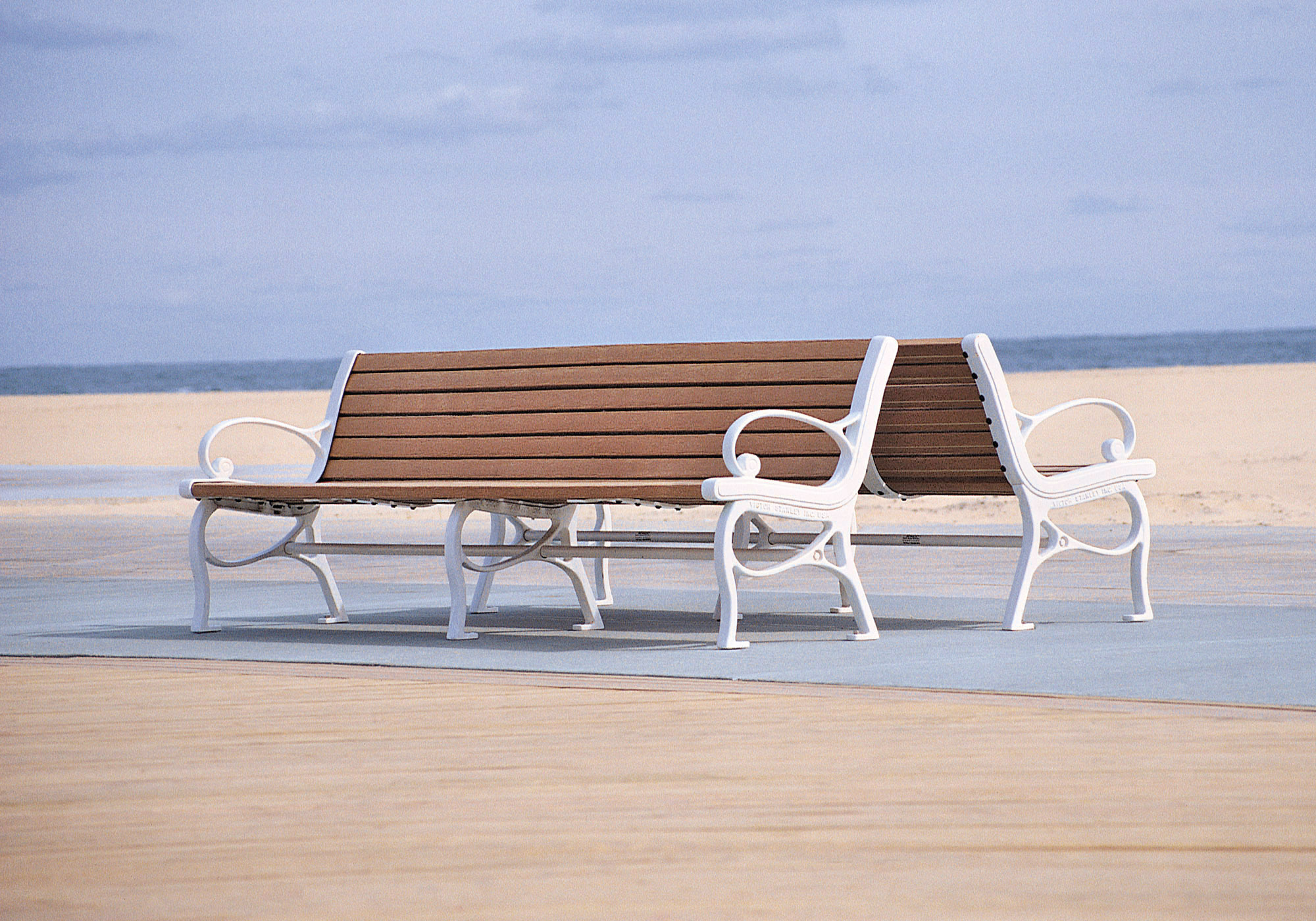

A traditional favorite.

4, 6 or 8 ft (1.2, 1.8 or 2.4 m) lengths. Nominal 2×3 (38×63 mm) slats. Surface mount. Backless available as Model C-158.

Standard

All fabricated metal components except stainless steel are steel shotblasted, etched, phosphatized, preheated and electrostatically powder-coated with TGIC polyester powder coatings.

Victor Stanley castings are genuine DUCTILE-IRON and carry our 10-year warranty against breakage.

Options

Wood slat seating. Black, espresso, light gray or wheat 2nd Site Systems® recycled slats for 4 and 6 ft (1.2 and 1.8 m) lengths. Intermediate armrests (bolt-on).

Product Documents

Brochures

Victor Stanley Catalogsaveloading
link

CAD Drawings

1.8 Meter Length, 2nd Sites slatssaveloading
DWGPDF
4' Lengthsaveloading
DWGPDFDWGPDF
6' Lengthsaveloading
DWGPDFDWGPDF
6' Length with Intermediate Armrestsaveloading
DWGPDFDWGPDF
6' Length, 2nd Sites slatssaveloading
PDFDWG
6' Length, Center Armrest, 2nd Site Slatssaveloading
DWGPDFDWGPDF
8' Lengthsaveloading
DWGPDFDWGPDF
8' Length with (3) Intermediate Armrestssaveloading
DWGPDFDWGPDF
8' Length with Intermediate Armrest saveloading
DWGPDFDWGPDF

CSI Specs

CSI Written Specifications saveloading
DOC

Assembly Instructions

C-138 Assembly Instructionssaveloading
PDF

SketchUp

6' Lengthsaveloading
skp
