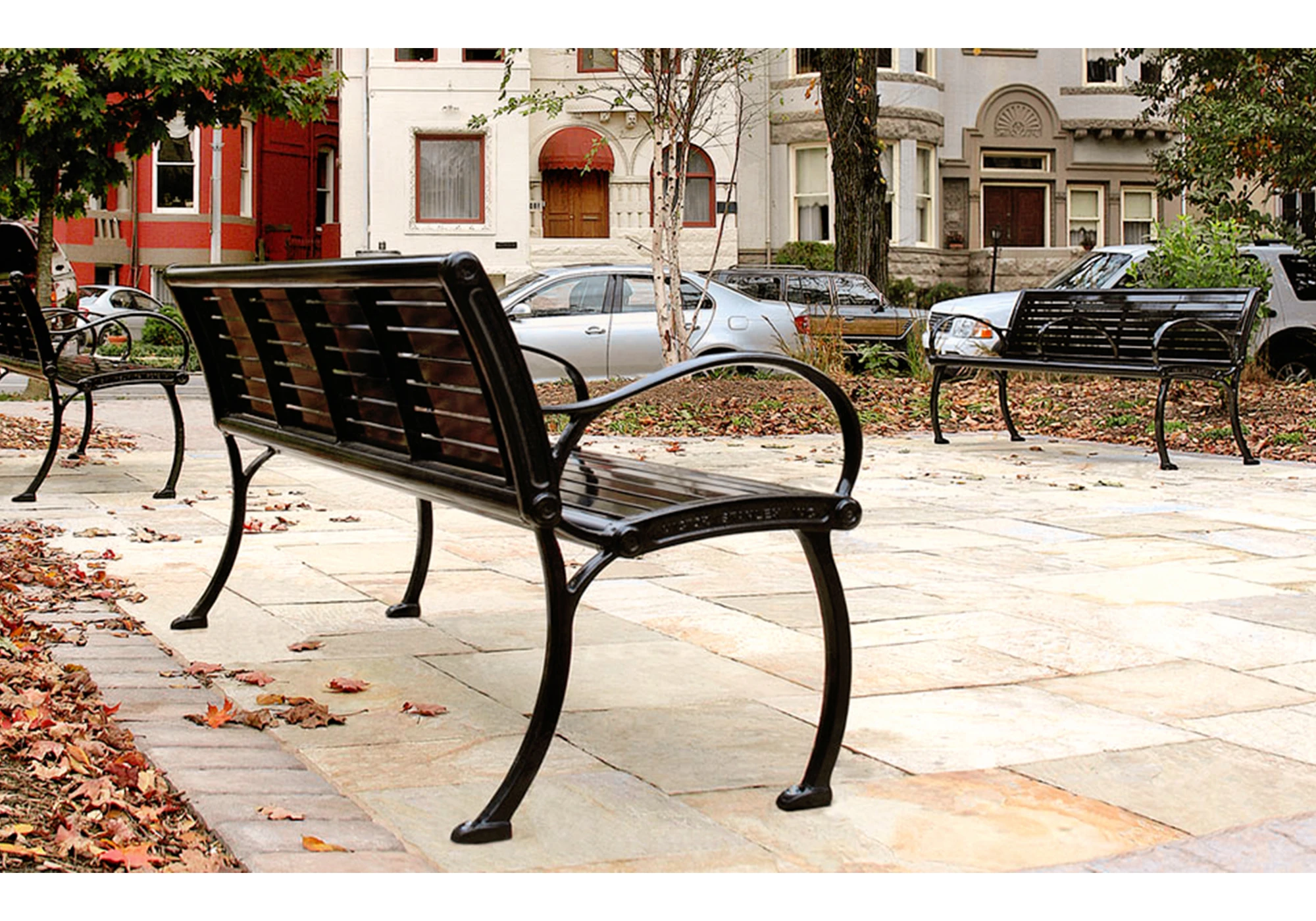

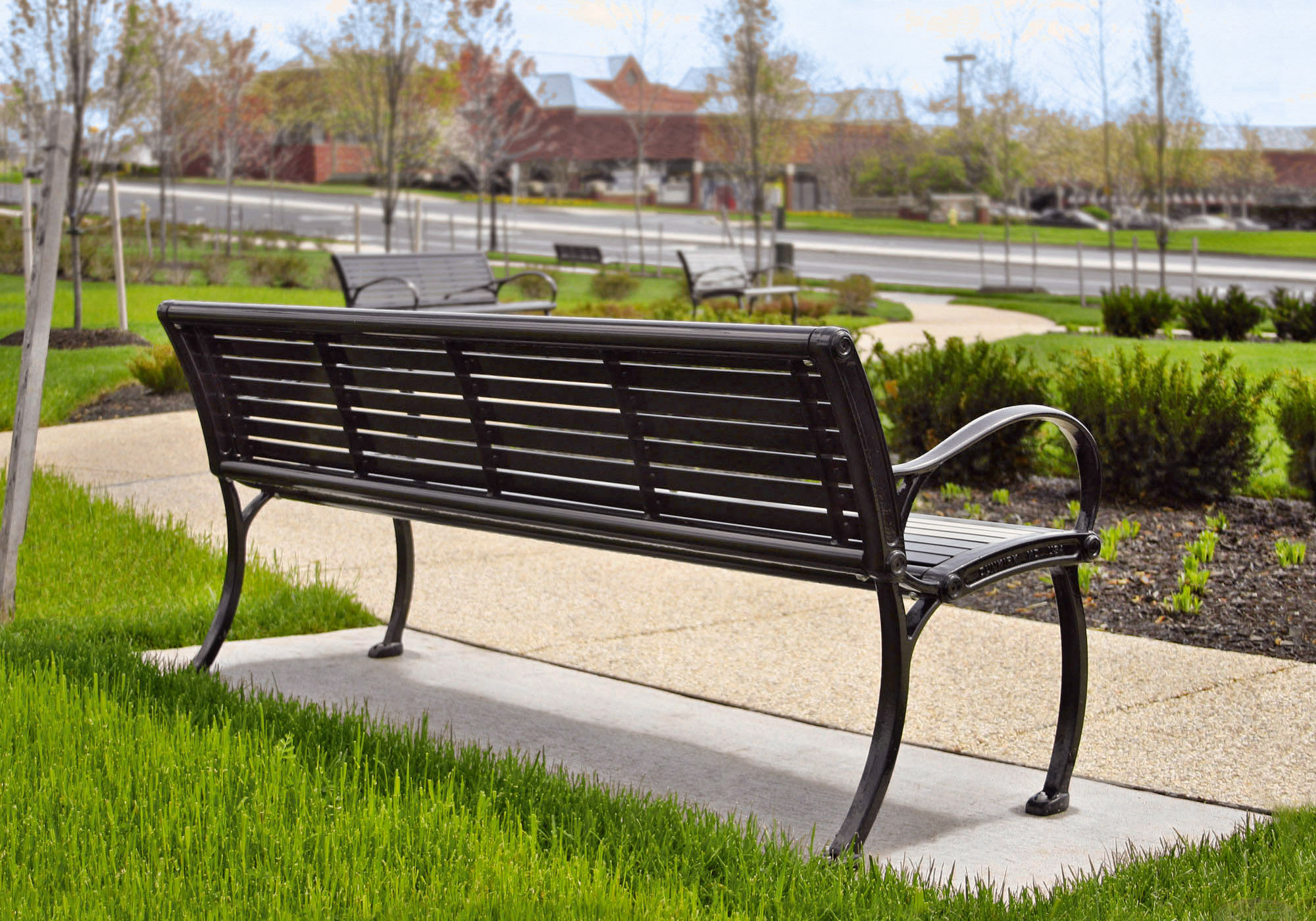

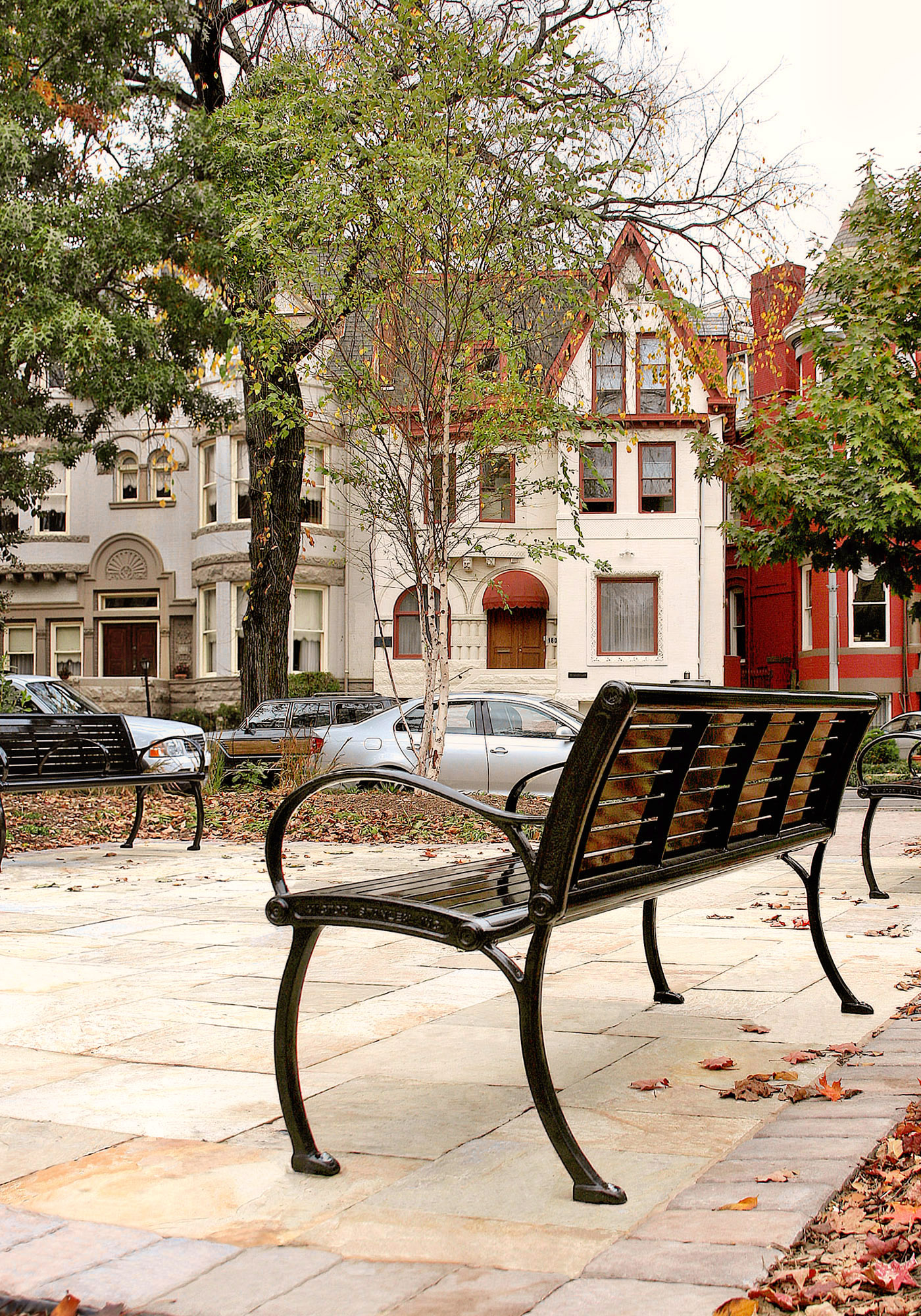

Seating with world-renowned Victor Stanley durability and comfort. Slim curved legs and graceful arms are complimented by clean lines. Four tubular steel frames continue the flow of the castings across the bench. Contoured armrests continue to the front plane of the bench for comfort and ease of use.

4, 6, 8, 12 or 16 ft (1.2, 1.8, 2.4, 3.7 or 4.9 m) lengths. Center cast leg with armrest standard for 12 and 16 ft (3.7 and 4.9 m) lengths. Horizontal steel slat seating. Surface mount. US Patents D523,263 S; D563,689 S; Canada Reg (D) 110954.

Standard

All fabricated metal components are steel shotblasted, etched, phosphatized, preheated and electrostatically powder-coated with TGIC polyester powder coatings.

Victor Stanley castings are genuine DUCTILE-IRON and carry our 10-year warranty against breakage.

Options

Intermediate armrests (bolt-on). Skateboard guards (US Patent D647,729 S).

COORDINATING PRODUCTS

Product Documents

CAD Drawings

1.8 m Length, (1) intermediate armrest (bolt-on)saveloading
DWGPDF
16' Length, full center leg with arm, (2) intermediate armrests (bolt-on)saveloading
PDFDWG
4.8 m Length, full center leg with arm, (2) intermediate armrests (bolt-on)saveloading
DWGPDF
6' Lengthsaveloading
DWGPDFDWGPDF
6' Length, (1) intermediate armrest (bolt-on)saveloading
PDFDWG
8' Lengthsaveloading
DWGPDFDWGPDF

CSI Specs

CSI Written Specificationsaveloading
DOC
